Prototype: Section III, Screen 7

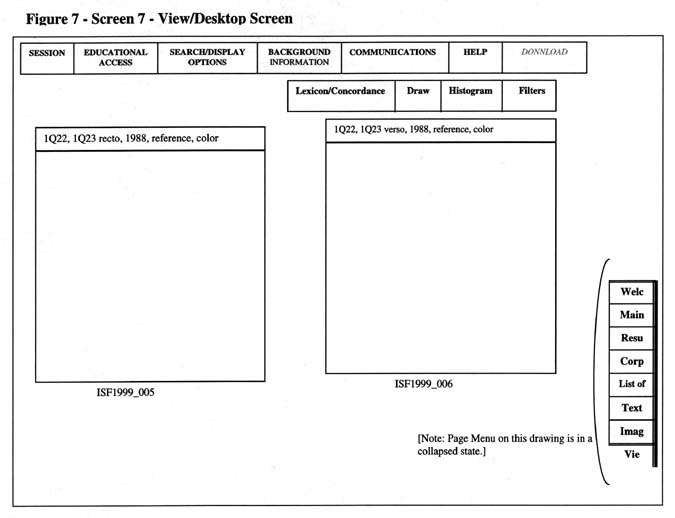

Screen 7, View/Desktop Screen

1. The MrSID viewer is provided for viewing images on the View/Desktop Screen.
2. The MrSID viewer will allow more than one image to be viewed and compared at a time.
3. The MrSID viewer will allow pan and zoom of areas.

A third party software, MrSID will be used to view the prototype images.

The same general design should be used. That is, the General Menu and Page Menu should appear on the screen as designed in the files: ISF_1, ISF_2, ISF_3, ISF_4.

The MrSID viewer allows the user to open windows as needed. A minimum of two windows should be able to open in Screen 7, View/Desktop.

The toolbox is not functional for the prototype.
